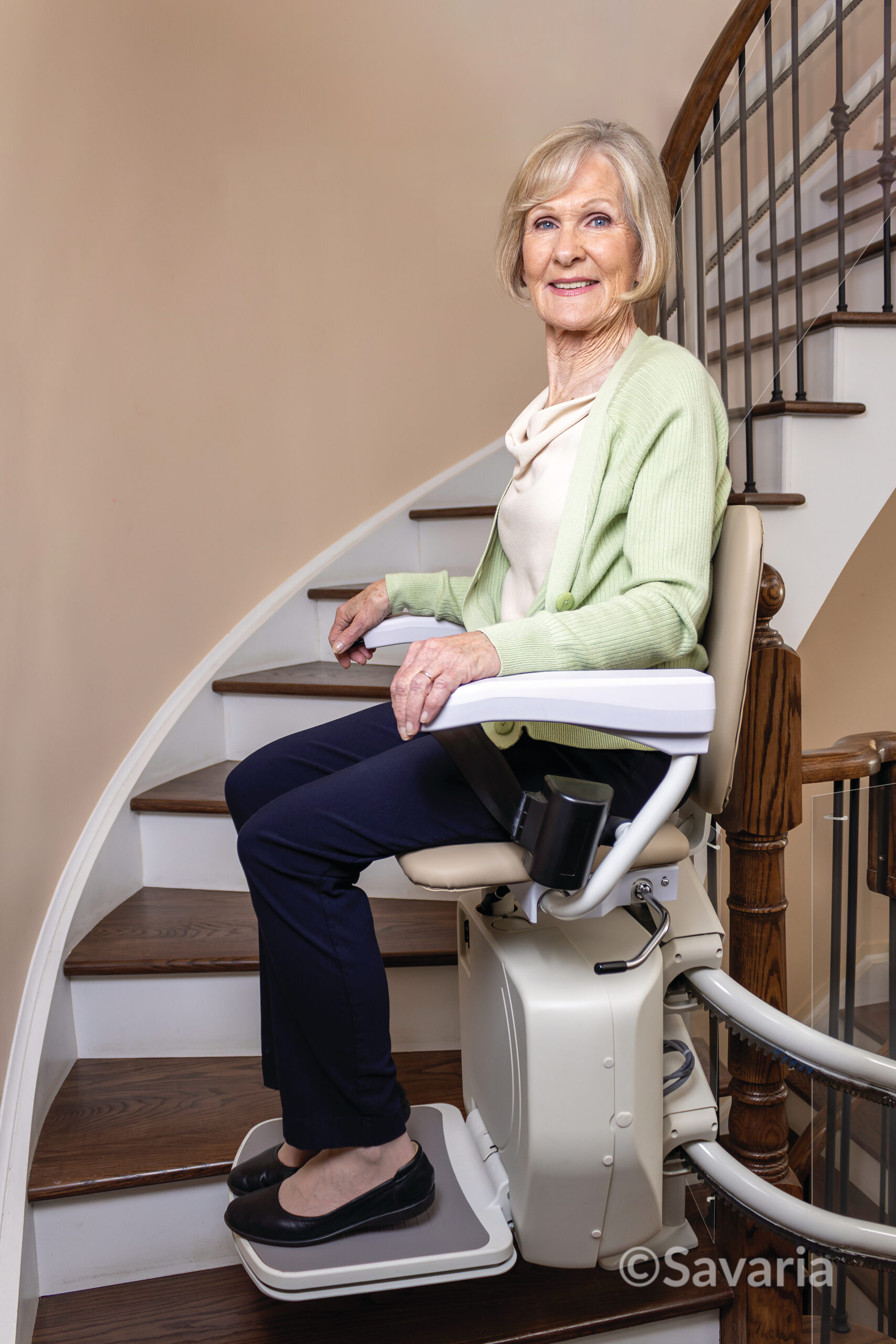

Savaria, Curved Stairfriend Stairlift
Contact For Price
Many people dread the thought of moving just to avoid climbing stairs.
After all, this is the home you’ve enjoyed for many years with family and
friends. The Savaria Stairfriend 23 can give you the freedom to stay in your
home and enjoy it without the worry of navigating stairs. Ride in comfort
around curves, landings or changes in direction with the Stairfriend –
specifically designed for your home.
Installing the Savaria Stairfriend 23 usually involves only two visits to your
home. The first visit includes a precision measuring session to ensure
a perfect fit for your stairs and the installation is easily completed
on the second visit. Move up, not out with Stairfriend, from industry
leader Savaria
Description
LANDINGS OR TURNS
Many staircases feature an intermediate
landing that may also accommodate
a turn in the direction of the stairs.
Stairfriend can easily be configured to
travel at virtually any angle to follow the
path of your stairs. The travel rail can be
mounted close to the wall on self support
posts or alongside the railing.
CURVES OR SPIRALS
Spiral or curved stairs can be very complex to accurately measure by hand, but with the Savaria photo measuring system, no curves are too challenging to measure with accuracy. This ensures a perfect ft for installation, making
installation services very efficient.
OPTIONAL FEATURES
The Stairfriend can also accommodate
optional features such as out-of-the way
parking, that allows you to park your chair
away from the bottom or top of your
stairs. You can also add an overrun of rail
to extend the Stairfriend stop position
to a more convenient location. These
optional features can be added to any
configuration of stairs.
- Designed for indoor access over stairs with multiple levels, curves or intermediate landings
- Double rail custom bent to exact specifications; out-of-the-way parking option
- Quiet, smooth-riding operation with 300 lb capacity and optional 350 lb capacity
- Choice of 2 seat styles to suit your comfort needs
- Suitable for residential use and commercial applications in some regions*
- Battery operated; allows operation during a power outage
- For straight stairs, see the K2 stairlift
The nuts and bolts
Battery powered: Operates through power interruptions with charging stations at top and bottom and optional intermediate landings.
On-board controls: With soft start and smooth stop operation, seat swivels and locks into position for safe boarding and deboarding, retractable seat belt.
Radio frequency remote controls: Offer greater range and control of device from other rooms.
Overspeed governor and obstruction sensors: To stop the chair if it meets an object in both up or down travel directions.
Reliable rack and pinion drive: With sturdy, twin steel tube rail construction.
Custom-built: For curves, turns, landings and parking, and can be mounted on either side of stairs.
LED status lights: To advise of any issues.
Finish options: Choice of seat with wipe-clean synthetic leather.
Warranty: 36 months parts. Please see complete details here.
Options: Choice of seat, 90º or 180º parking, top or bottom overrun, keyless access, emergency stop button, extra-long seatbelt and 5-point harness.
Applications: Residential, commercial*, indoor.
Standard capacity: 300 lb (136 kg), optional 350 lb (160 kg)
Maximum travel: 84′ (25.60 m)
Nominal speed: 20 ft/min, (0.1 m/s), 12 ft/min (0.06 m/s) through curves.
Motor: 0.6 hp, 24V (DC)
Fold-up depth: 16.25″ (413 mm)
Fold-out depth: 27″ (686 mm), with offset footrest: 25.75″ (660 mm),
with small footrest: 25″ (640 mm)
Range of incline: 0˚ to 56˚
*where permitted by code
