- Folds flat simply and quickly for transport and storage;
fast, hassle-free assembly. - Safe and Reliable: Redundant controls; overload
protection; emergency lowering; 3-year frame warranty. - Easy operation: Simple charging; audible/visual
indicators; locking rear casters. - Powerful yet maneuverable: 400 lb (182 kg) safe
working load provides flexibility in a compact footprint.ƒ ƒ
ƒ - Locking rear casters, foot-activated lock/unlock.

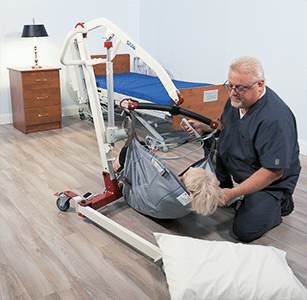

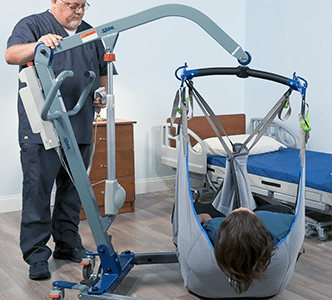

- Floor extraction: Can be used to lift patients from floor.
- Quick-release battery can be charged via charging cradle
(optional), or via plug-in charger (included) for charging in
place. - Overload protection with visual/audible alert, halts lifting
when capacity is exceeded. - Manual emergency lowering for added safety.
ƒ Simple, fast assembly using tools provided. - Certified to: ISO 10535; IEC/EN/ANSI/AAMI/CAN/
CSA-C22.2 60601-1, 60101-1-2, and 60601-1-11;
SGS Mark for Safety.
SPECIFICATIONS
Weight Capacity 400 lb / 182 kg
Overall Base Length 41.0″
External Base Width (Closed) 27.6″
Internal Leg Width (Opened) 32.0″
Upright Mast Height 48.3″
Base Height 4.7″
Minimum Lifting Height
with Spreader Bar
18.5″
Maximum Lifting Height
with Spreader Bar
67.2″
Net Weight 90 lb / 41 kg
Shipping Weight 104 lb / 47 kg
