Description
Non-powered pressure redistribution support surface
SPAN Geo-Mattress® UltraMax™
Innovative design sets UltraMax™ apart from typical reactive surfaces and enables it to exceed even the most rigorous requirements of the acute health care setting.
- Reactive surface with Ultra High Performance seat section
- Bi-directional stretch cover with Shear Transfer Zones®
- Exceeds even most rigorous requirements of Acute Care
Description
Extra-soft, high performance top provides maximum immersion and a premium feel against user’s skin. All Geo-Mattress models also feature vapor barrier, bacteriostatically treated covers.
- Reactive surface with Ultra High Performance seat section
- Bi-directional stretch cover with Shear Transfer Zones®
- Exceeds even most rigorous requirements of Acute Care
- Anatomically-calibrated support and immersion
- Ultra High Performance Foam specially made for UltraMax™
- Unmatched protection from “bottoming out”
- Combination of resiliency, recovery and comfort
- Creates shear-minimizing bands beneath heels, sacrum and scapula
- Helps “glide” user to original position following gatching
- Provides overall stability while offsetting friction
- Polycarbonate-fortified, cleanable LifeSpan® cover
- 2″ deep topper reduces shear to underlying tissues
- More than 800 individually-articulating cells
- Redistributes pressure, reduces heat and skin moisture buildup
- Heel Slope™ designed to further reduce heel pressure
- Brings advanced Geo-Mattress® technology to recessed deck beds
- Accommodates V-shaped design requirements
- Compressible foot section
- Patented inner bolster “cradling effect” for user safety
Indications:
- Prevention of Stage 1-4 pressure injuries
- Early intervention for multiple Stage 1-2 and treatment of single Stage 3 pressure injuries
- Can be positioned off the injury in at least 2 positions
- Decreased mobility
- Repositions frequently by self or caregiver
Benefits
Available Recessed Deck Version
Stands up to demanding hospital environments
Designed to deliver optimal performance that lasts
Robust Ultra High Performance Foam Seat Section
UHP 500 Foam – Specially made for UltraMax™
Repeated head of bed elevating and the patient’s concentrated weight combine to expose the seat section to the highest level of mechanical fatigue. UltraMax™ distinguishes itself by offering unmatched protection from “bottoming out”. A unique cellular structure gives UHP 500 a combination of resiliency, recovery and comfort not achievable with any of the foams commonly used in medical support surfaces.
Geo-Matt® Top Surface
- Segmented top layer reduces shear to underlying tissues
- More than 800 individually-articulating cells
- Redistributes pressure, reduces heat and skin moisture buildup
Two-Way Heel Protection
Segmented breathable viscoelastic foam cradles the heel. Gentle Heel Slope® redistributes pressure to more pressure-tolerant lower legs.
Shear Transfer Zone® Cover Design
Beyond its Geo-Matt® segmented top surface, an additional measure of shearing protection is provided by the silicone-coated, shear minimizing fabric bands located on the underside of its bi-directional stretch cover. This Shear Transfer Zone design helps:
- Prevent heels, sacrum, and scapula from “digging into” surface
- “Glide” user back to original position following HOB elevation
- Protect against damaging effects of micro shear, macro shear, and rotational (pivot-induced) shear
- Provide patient stability by transferring shear to more shear-tolerant anchor points

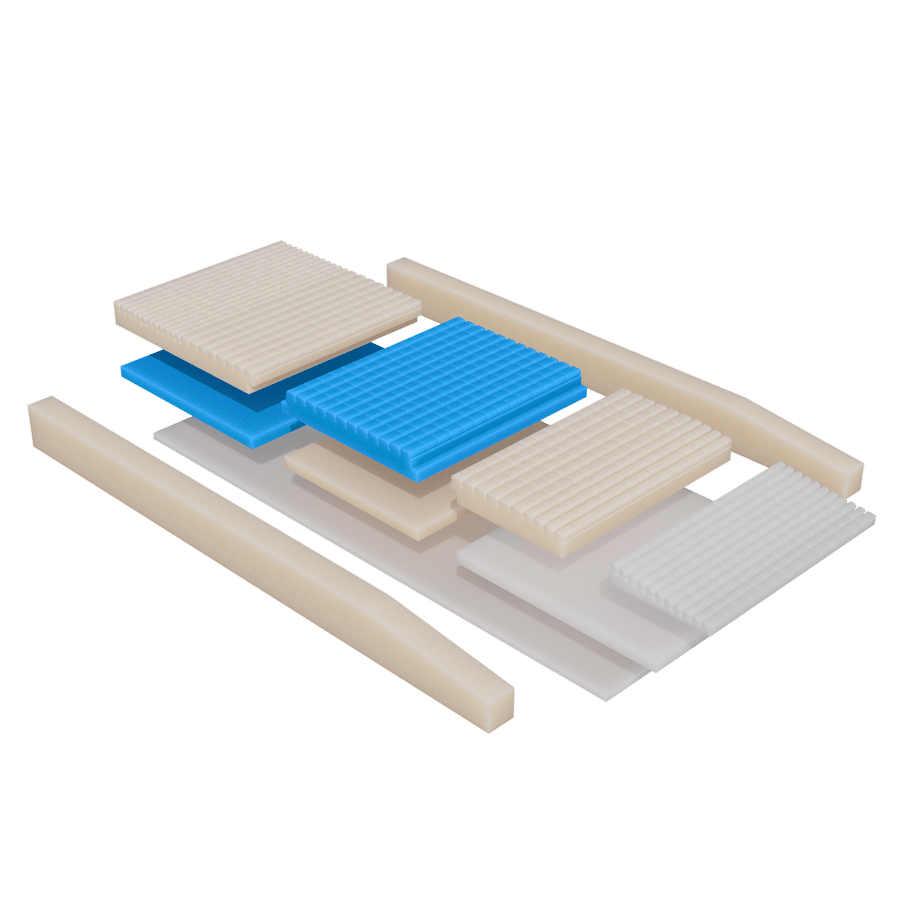

3-Dimensional Zoning™ Core Design
UltraMax™ is built for extreme comfort with 3-Dimensional Zoning core design providing anatomically- calibrated levels of support and immersion throughout the surface.
LifeSpan® Fabric
The cover’s enhanced features include the unique design of the anti-microbial bi-directional stretch cover made with Span’s superior LifeSpan fabric.
LifeSpan is extremely durable and cleanable and delivers outstanding resistance to chemical breakdown caused by bleach and other harsh disinfectants.
Recessed Deck Model
The recessed deck versions of selected Span surfaces, including the Geo-Mattress® UltraMax™, brings our advanced technology to recessed deck beds.
Our engineers have developed a version of the Geo-Mattress® UltraMax™ surface to accommodate the unique design requirements of recessed deck beds. V-shaped edges enable the mattress to fit the recessed deck bedframe, while the compressible section accommodates multiple lengths and foot positions.
Design creates an inner bolster “cradle” effect for added safety when the patient sits on or moves toward the bed edge. This protective feature helps direct the patient’s center of gravity safely back toward the center of the bed. Two sturdy fabric handles improve relocation ergonomics.
- Inner Bolster “Cradling” for Patient Safety
- Compressible section adds length flexibility
Specifications:
| Weight limit: | 500 lbs (36”); 600 lbs (39” and 42”) |
| Weight: | Mattress: 24 lbs |
| Cover: | Cover: LifeSpan™ bleach-resistant four-way stretch fabric. Fluid-resistant, anti-microbial, flame-resistant, wipes clean. |
| Flammability: | All models are certified for conformance to NFPA 101 (Life Safety Code) – ASTM E1590; Cal Tech Bulletin #117 and16 CFR Parts 1632 and 1633 by an independent testing organization. |
| Warranty: | 8 years, all components. Non-prorated |
Additional information
| Size | 35"Wx80"L, 39"Wx80"L, 42"Wx80"L |
|---|
